Tent size
Clear span width 6m, 8m, 10m, 12m, 15m, 18m, 20m, 21m, 25m, 30m is
available, length is no limit, or customized width from 3m to 40m
as required.
| Mode No. | Width | Bay distance | Side height | Ridge height | Main profile |
| HC-L008 | 8m | 3m | 2.6m | 4m | 84mmx48mmx3mm |
| HC-L010 | 10m | 3m | 2.6m | 4.8m | 84mmx48mmx3mm |
| HC-L012 | 12m | 3m | 2.6m | 5.2m | 120mmx68mmx3mm |
| HC-L015 | 15m | 5m | 3m | 5.5m | 166mmx88mmx3mm |
| HC-L018 | 18m | 5m | 4m | 6.8m | 203mmx110mmx4.5mm |
| HC-L021 | 21m | 5m | 4m | 7.5m | 203mmx110mmx4.5mm |
| HC-L025 | 25m | 5m | 4m | 8m | 203mmx110mmx4.5mm |
| HC-L030 | 30m | 5m | 4m | 8.8m | 250xmmx120mmx5.5mm
|

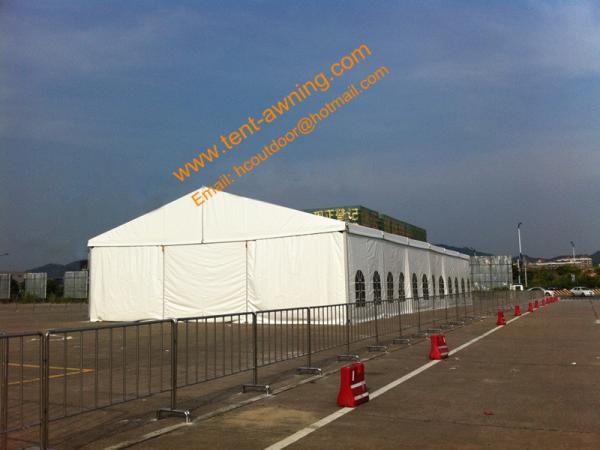

Outdoor tent aluminum framework
Tent material
- Frame struss: hard pressed extruded aluminium, which can last more than 20
years.
- Fabric cover: high quality double PVC-coated polyester textile, 100% waterproof,
flame retardant to DIN4102 B1, M2, CFM, UV resistant, tear
resistant, self-cleaning ability, etc.
- Connector: strong hot-dip galvanized steel
- Allowed temperature condition: -30 degree Celsius~+70 degree Celsius
- Wind load: max. 100km/h (can be reinforced)
- Snow load: 7.5kg/sqm
Tent aluminum frame profile
Optional accessories for tent
- Covers: standard white cover, colourful cover, transparent cover
- Windows: no window or with pvc transparent windows
- Flooring System: wooden flooring
- Doors: double-wing glass door, single-wing glass door
- Lining and curtain, carpet
- Weight plate
Tent applications
Our products are widely used for Event, Party, Wedding,
Celebration, Festival, Exhibition, Trade show, Sportsevent,
Workshop, Warehouse, Temporary house, Business, etc.
Packages of tent
1. Aluminum frame and hardware packed in membrane film
2. Roof cover and sidewall in professional PVC carry bag
3. Accessories:put in cartons
4. According to your requirement
Q: How can I inquire?
Provide the size you need (widthxlength), or for how many people
you need the tent to contain, we will recommand the size to you
according to your demand.
Q: What is the material of your tents?
Our tent frame is reinforce Aluminum; fabric material is 850g/m²
for roof and 660g/m² for
walls, Double PVC-Coated Polyester. Our tent structure is safe, strong and can resist wind up to 100km/h.
Q: Can you print our logos on tent?
Yes, we can print your logo on the tent fabric according to your
requirement.
Q: Is the tent easy to install and take down?
We will send you installation manual as well as the installation
video, and you can come to our factory to learn how to install the
tent.
Q: Is the tent able to install repeatedly?
Yes. The tent can last more than 20 years, and it is suitable for
rental business.It can be assembled and dismantled repeatedly.
